Model and layout
Confirm single, double or offset basin, plus the exact left or right variant. Treat the F4530 left, centre and right tap-hole models as tap-hole variants rather than offset basins.
ORDER REVIEW
Quality Control Starts with an Agreed Specification
For a bathroom cabinet maker or importer, a useful quality record begins with the exact model, drawing revision and finish reference. The supplied CADIA material supports those checks; equipment, inspection frequency and acceptance limits must be agreed for each order.
BEFORE PRODUCTION
Lock the Product Identity
Use one model name and one current drawing across the quotation, sample approval and order.
Dimensions and drawing
Compare overall width, depth and height with the cabinet. Mark bowl, waste and tap-hole positions on the current model drawing and record any printed tolerance that affects fit.
Finish reference
Use a physical glaze sample when colour or gloss matters. Record the model and finish reference together so a screen image is not treated as the approval standard.
WHAT THE FILES CAN SHOW

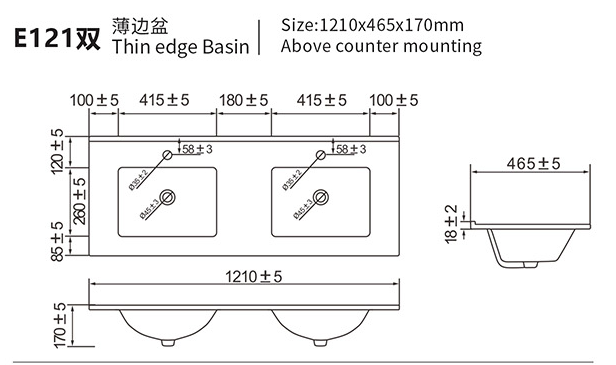

Check the Drawing Against the Cabinet
The catalogue data provides a product image and dimensional drawing for each listed model. A buyer can use these to verify the overall footprint, basin layout and the location of functional openings before cabinet production.
The files do not establish a universal cabinet clearance or inspection tolerance. Drawer travel, trap size, support arrangement and any project-specific acceptance value need written confirmation with the supplier.
Drawing review checklist →APPEARANCE & PACKING
Make the Approval Record Usable

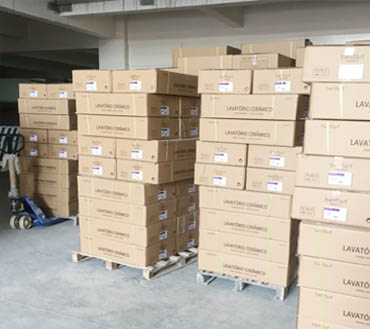

For the visible ceramic surface, record the approved colour sample, gloss expectation and any agreed appearance reference. For packing, confirm the model label, carton identification, internal protection and buyer marks before shipment.
Ask which photographs, packing list fields and shipping documents will be supplied for the order. These are confirmation items; the current project files do not prove a fixed inspection frequency, damage rate or test result.
Export packaging questions →
Send for Review
Model · drawing revision · cabinet plan · tap-hole layout · glaze reference · quantity · packaging marks
TALK TO CADIA
Review Your Cabinet and Product Specification
Send the model, cabinet drawing, requested finish, quantity and destination.
