Product image and drawing from catalogue page 13.
DOUBLE BASIN · CERAMIC
D131 Double Rounded Ceramic
Vanity Top
1310 × 465 × 170 mm
D131 Double Rounded is a ceramic integrated sink with two integrated bowls. Its catalogue dimensions are 1310 mm wide, 465 mm deep and 170 mm high. Rounded outer corners distinguish this version from the standard profile. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- D131 Double Rounded
- Material
- Ceramic
- Layout
- Double Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.
MODEL DIMENSIONS
Technical Specifications
| Model | D131 Double Rounded |
|---|---|
| Overall width | 1310 mm |
| Overall depth | 465 mm |
| Overall height | 170 mm |
| Material | Ceramic |
| Basin layout | Double Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 13 |

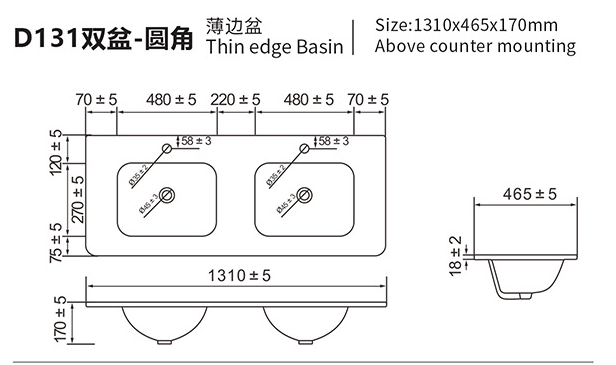

Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
