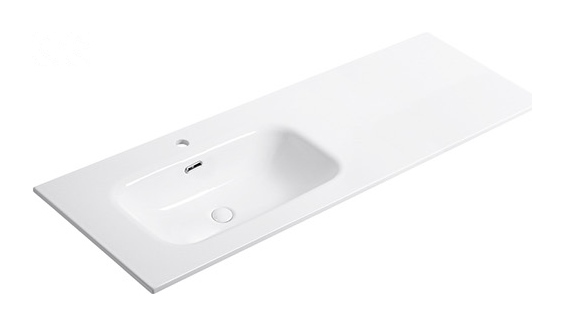

Product image and drawing from catalogue page 16.
SINGLE BASIN · CERAMIC
D1450 Ceramic
Vanity Top
1410 × 510 × 180 mm
D1450 is a ceramic integrated sink with one integrated bowl. Its catalogue dimensions are 1410 mm wide, 510 mm deep and 180 mm high. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- D1450
- Material
- Ceramic
- Layout
- Single Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.

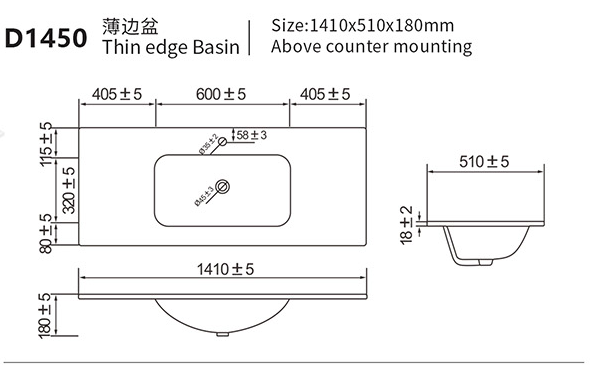

MODEL DIMENSIONS
Technical Specifications
| Model | D1450 |
|---|---|
| Overall width | 1410 mm |
| Overall depth | 510 mm |
| Overall height | 180 mm |
| Material | Ceramic |
| Basin layout | Single Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 16 |
Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
