Product image and drawing from catalogue page 6.
LEFT OFFSET BASIN · CERAMIC
E121 Left Ceramic
Vanity Top
1210 × 465 × 170 mm
E121 Left is a ceramic integrated sink with a left-positioned bowl. Its catalogue dimensions are 1210 mm wide, 465 mm deep and 170 mm high. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- E121 Left
- Material
- Ceramic
- Layout
- Left Offset Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.
MODEL DIMENSIONS
Technical Specifications
| Model | E121 Left |
|---|---|
| Overall width | 1210 mm |
| Overall depth | 465 mm |
| Overall height | 170 mm |
| Material | Ceramic |
| Basin layout | Left Offset Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 6 |

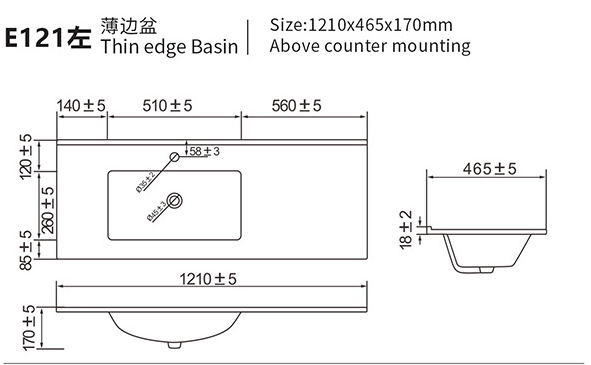

Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
